TA 21

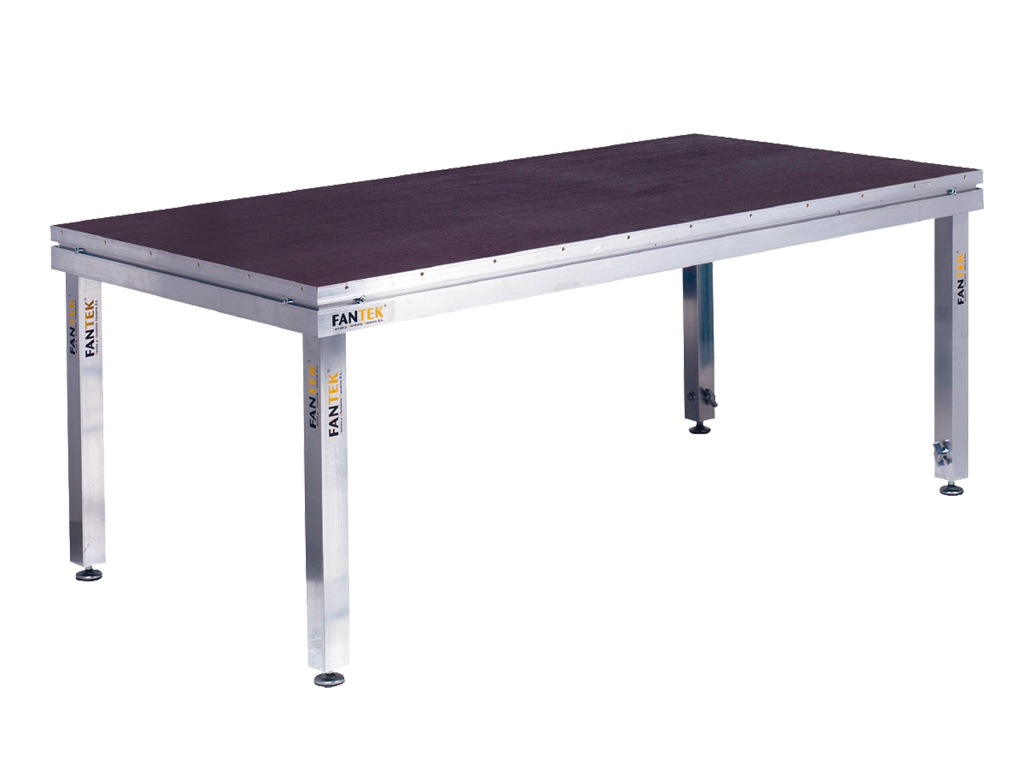

Stage Platform


Share on:

Description

With profiles made of high strength aluminum and finished with non-slip phenolic board, our stage platforms have great versatility and the highest guarantee of success.

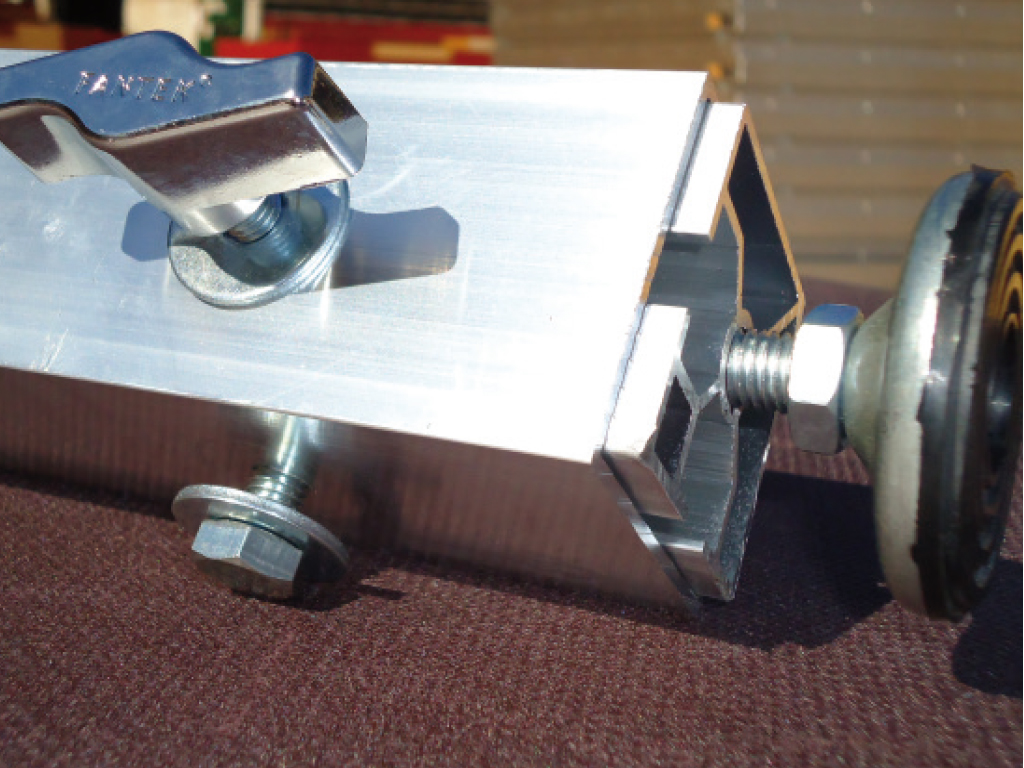

Wide range of fixed, extendable legs with and without leveling spindle, ramps, handrails ...

Both models are certified for a load of 750 kg. per square meter.

Custom dimensions: Yes

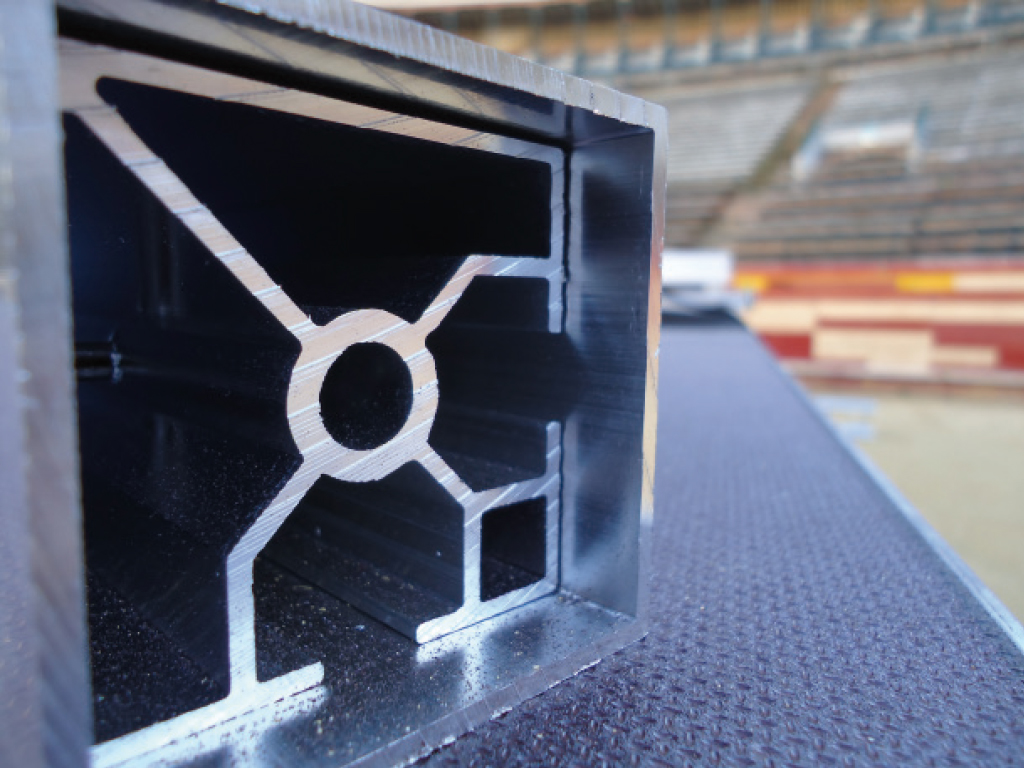

Metal profiles material: Aluminium 6082-T6 Alloy

Plywood: Birch plywood 21mm WISA® with weather-resistant phenolic gluing according to EN-314-2/class 3

Plywood according to rules: Interior as structural element dry environment, EN 636-1. Exterior protected as a structural element in a wet environment, EN 636-1. Exterior as a structural element with cladding and sealed edges, EN 636-3.

Enviromental: PEFC ST 2002: 2013 and PEFC ST 2001: 2008

Abrasion: DIN 53799 (1/1986) / EC438-2:1991

Fire reaction: D-s2, d0 (min 9 mm)

                                  E (<9 mm)

                                  F (coated products)

                                  Dfl-s1 (stage platform, min 9 mm)

                                  EN 13986:2004 +A1:2015

Gluing quality: Class 3 EC 314-2

Duratibily: Class 3 (sealed lining and edges)

Average density (Kg/m3) : 680

Water vapor permeability: Wet cup 90, Dry cup 220 (uncoated)

Available heights (cm) : 10-150

Stage module dimensions (m) : 2x1x0,098

Complete stage module certified against rule: DIN 4112-4113
