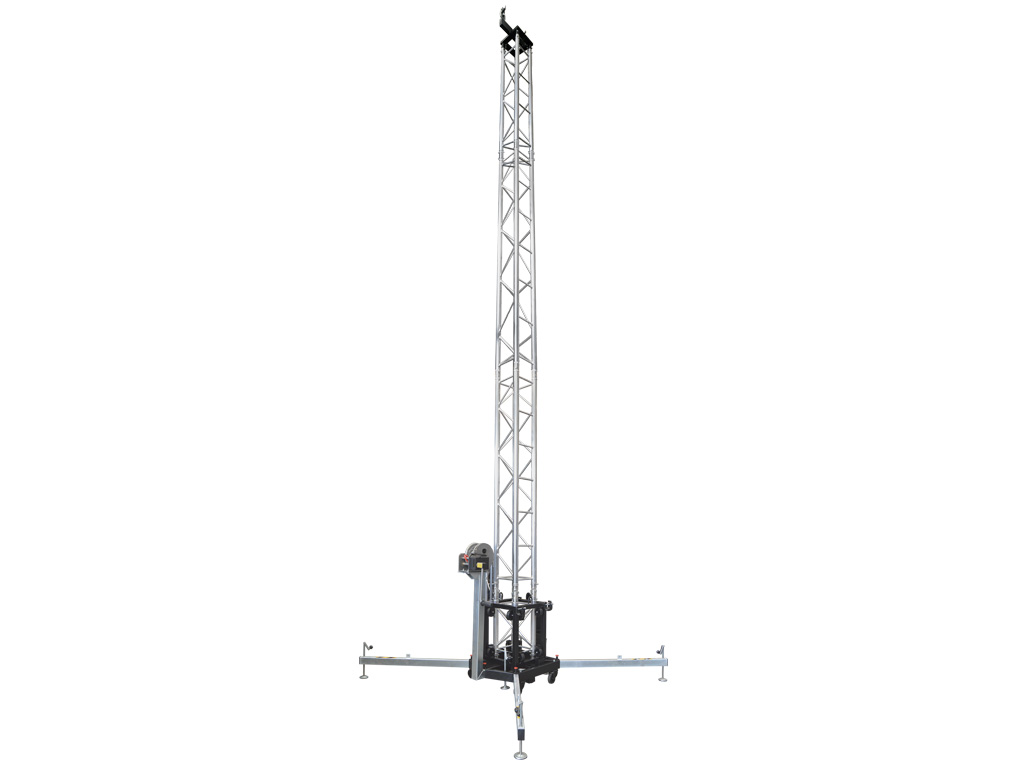

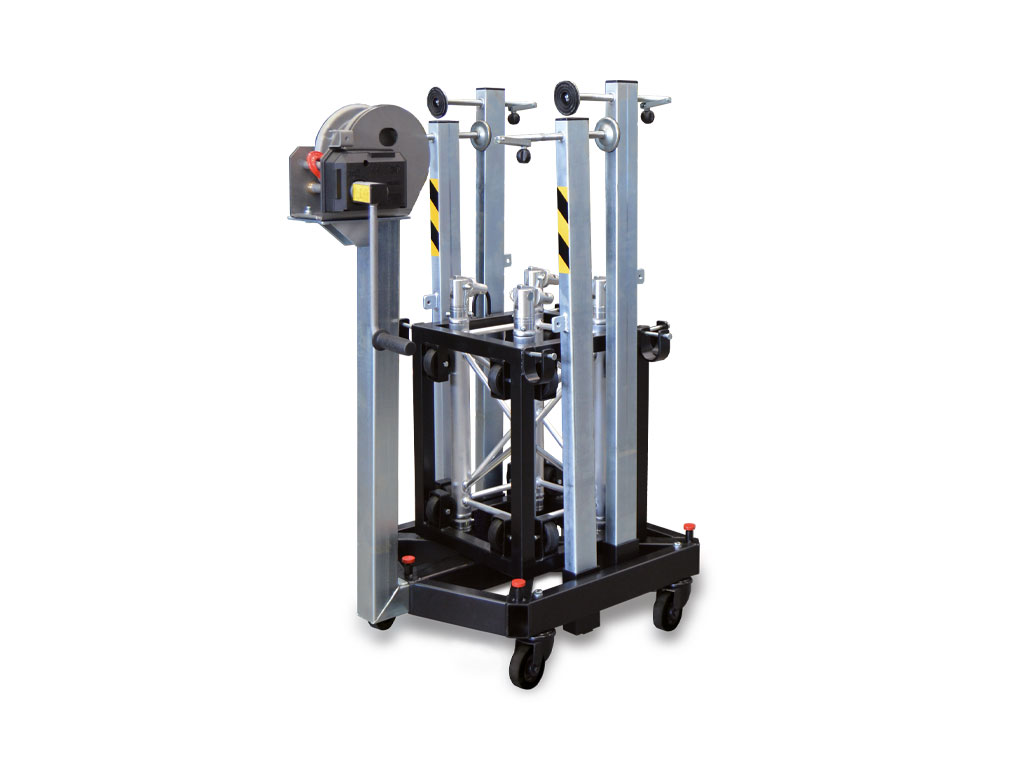

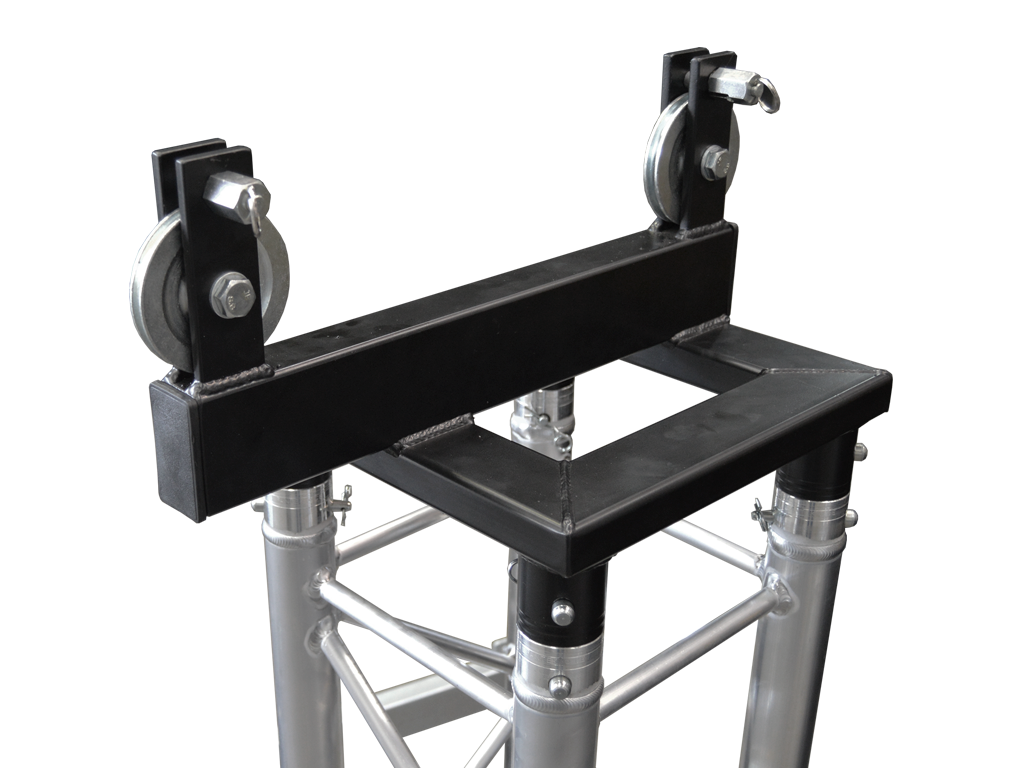

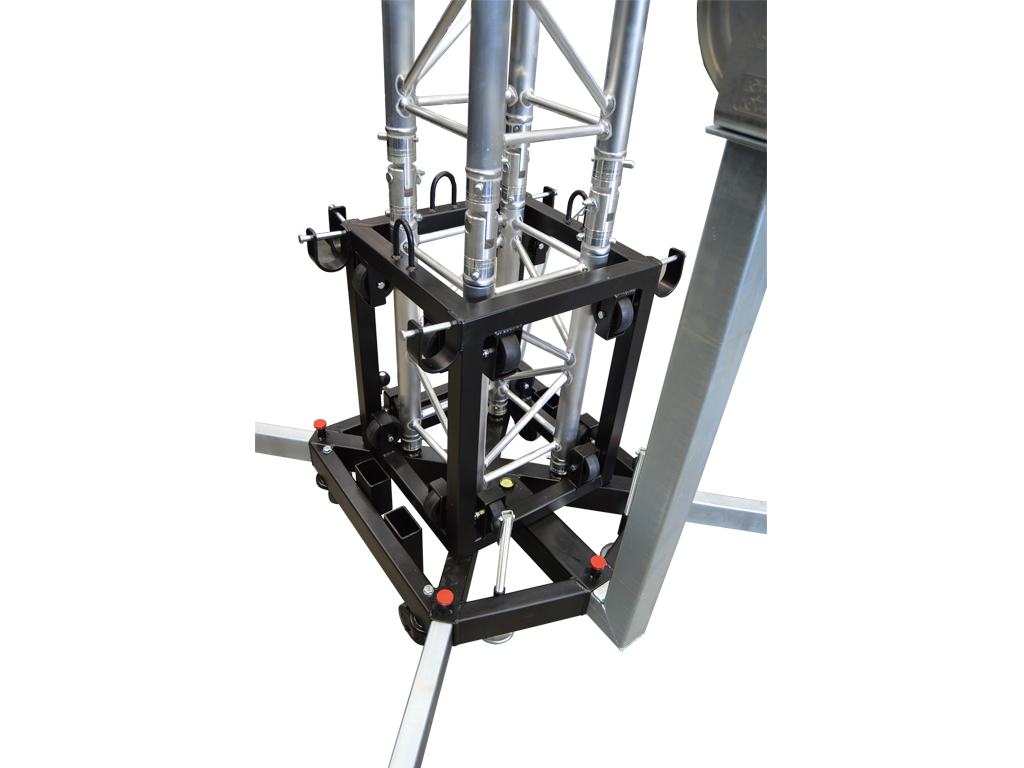

FANTEK tower structural model T-110 is emerging as the ideal solution for most small to medium sized road shows. The structural tower T-110 is designed to raise the full range of our MULTIPURPOSE trusses including SERIES 30, SERIES 40 and SERIES 45 by using the appropriate adapter. The lifting tower T-110 allows top trusses to be assembled and fitted at ground level and then raised easily up by using the lifting hand winch provided with the T-110MA or an appropriate motor with the T110MO. Optional top head double chain pulley (T-110CZM) and support for this location (T-110SPM). Locking system via optional sling (T-110ESB). T-110MA: Manual Winching. Capacity 500 kg./U. 7 meters high. T-110MO: Adapted for chain motor (motor not included). 1000 kg. 9 meters high.
|T110 - Manual de instrucciones V||Download|
