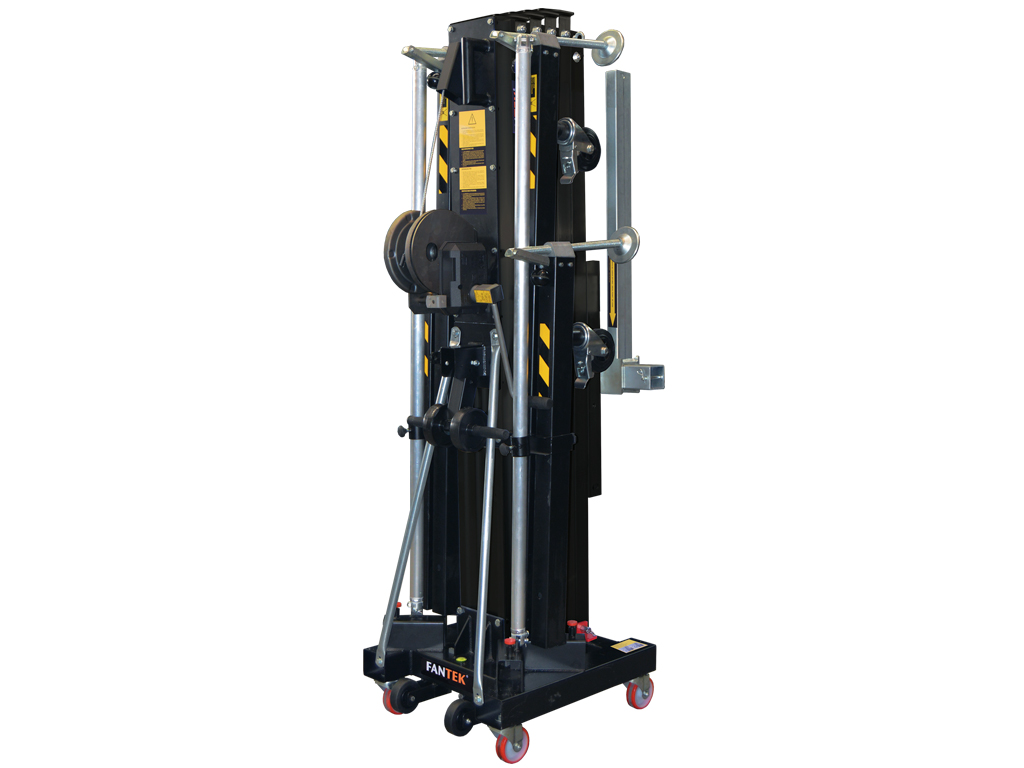

T-600 PA

LINE ARRAY Tower

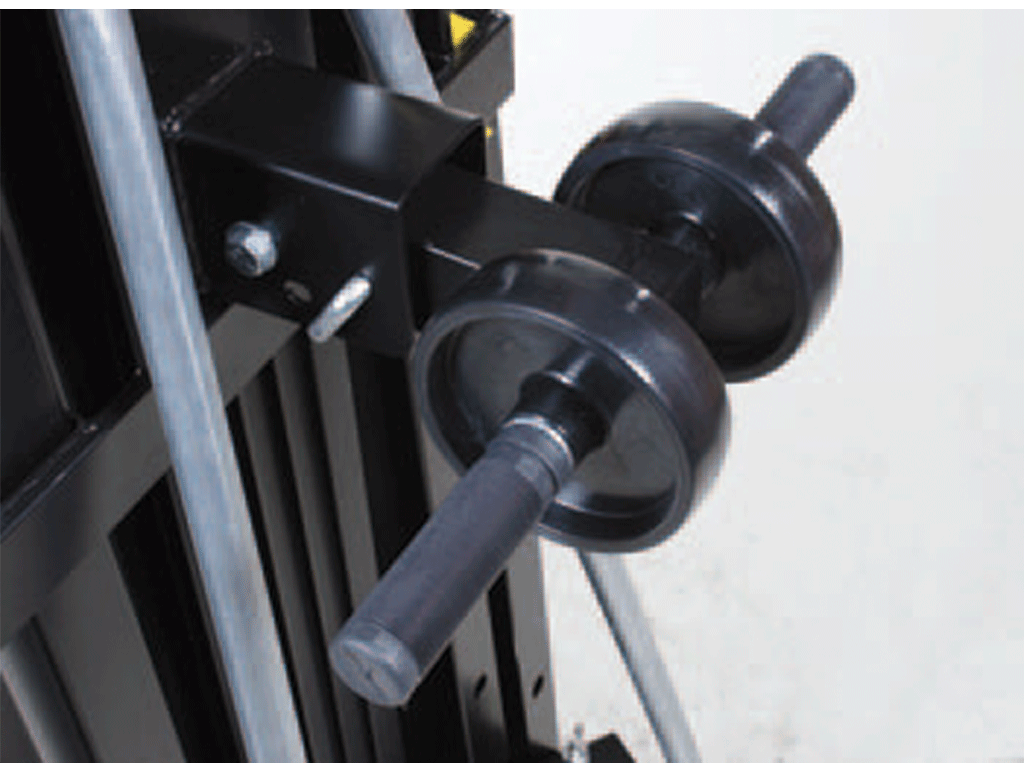

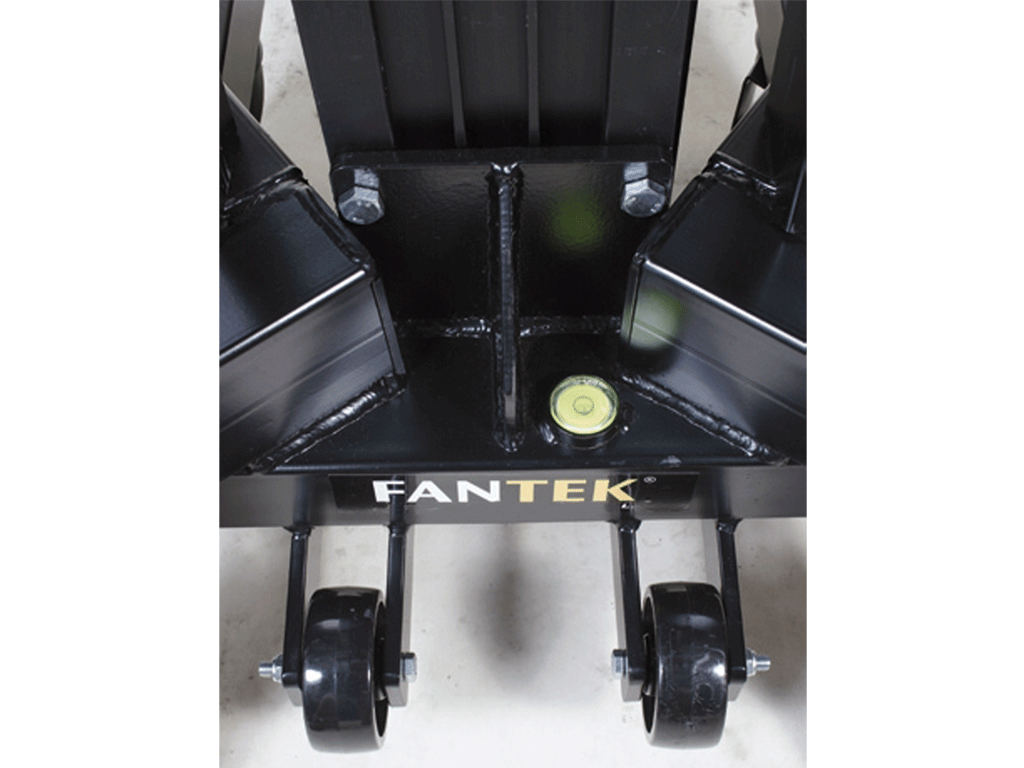

Tower for lifting line array of up to 600 kg. weight 6,8 meters high. Diagonal reinforcing bars, reinforced cables, oversized pulleys and enlarged legs gives this unit the needed strength and stability for a secure line array lifting procedure. All components are manufactured under compliance with the highest standards and equipped with most reliable winches. There are four transport wheels at the base, two folding wheels for horizontal transport in combination with two side wheels at its base that allow the perfect support and maneuverability of the unit in this position. The T-600PA features a dual braking load system.





Share on

Maximum Height22.31
Folded Height6.50
Maximum Load1322.77
Minimum Load55.12
Unfolded Base7.12 x 6.00
Folded Base1.87 x 2.46
Loading Fork37.2
Winch2645.55
Truss AdaptorATF1DS, ATF17PA, ATF17PAM
FinishedBlack / Silver
