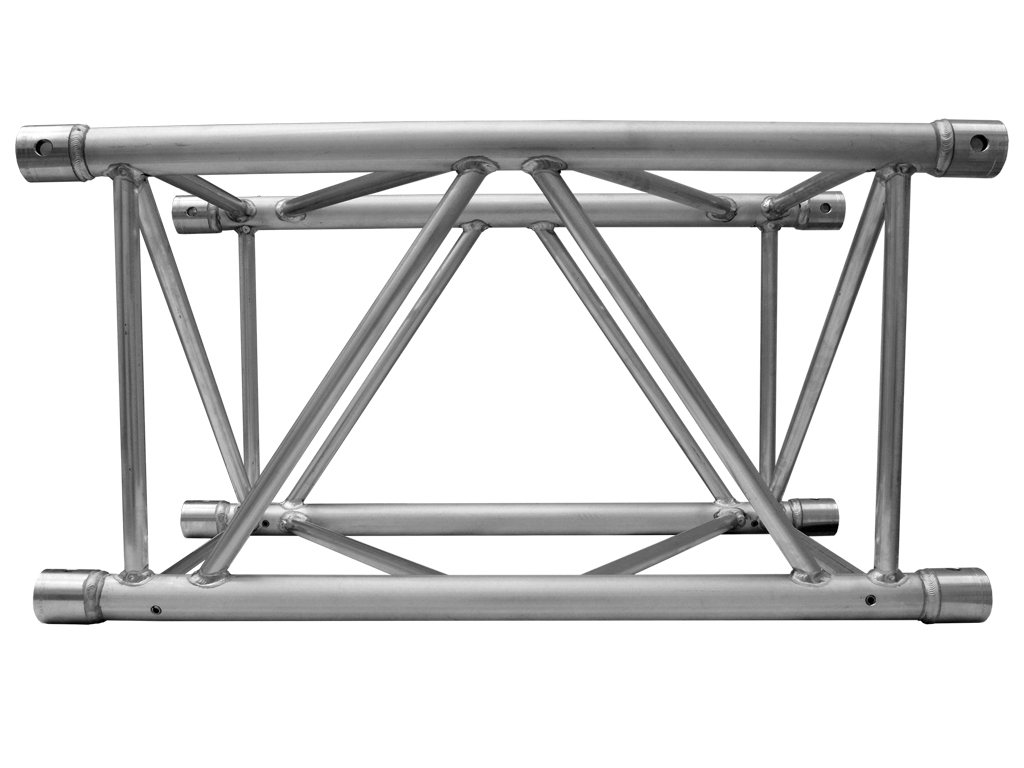

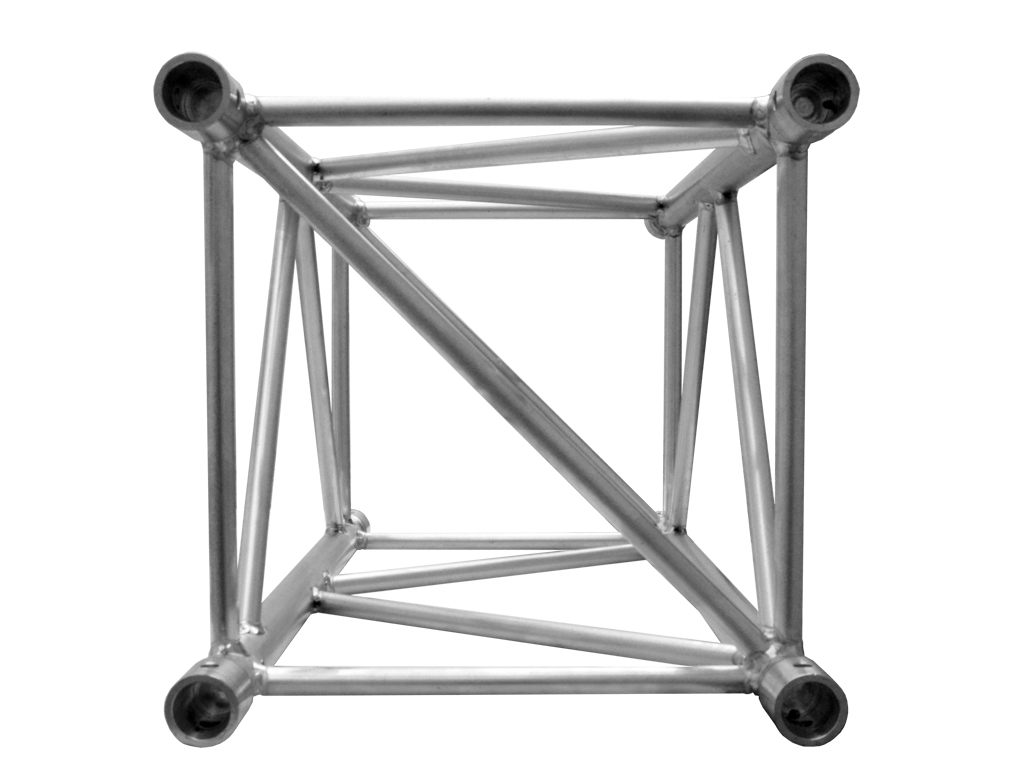

EC-52C
HEAVY DUTY TRUSS
Share on:
Description
This truss is intended for users who need a great load capacity. With a big section shape and the oversized new conical connection system CBC60, it's strong enough to cope assemblies with the highest load requirements without any complexes. Available in different colors under request. Available custom made pieces on request.

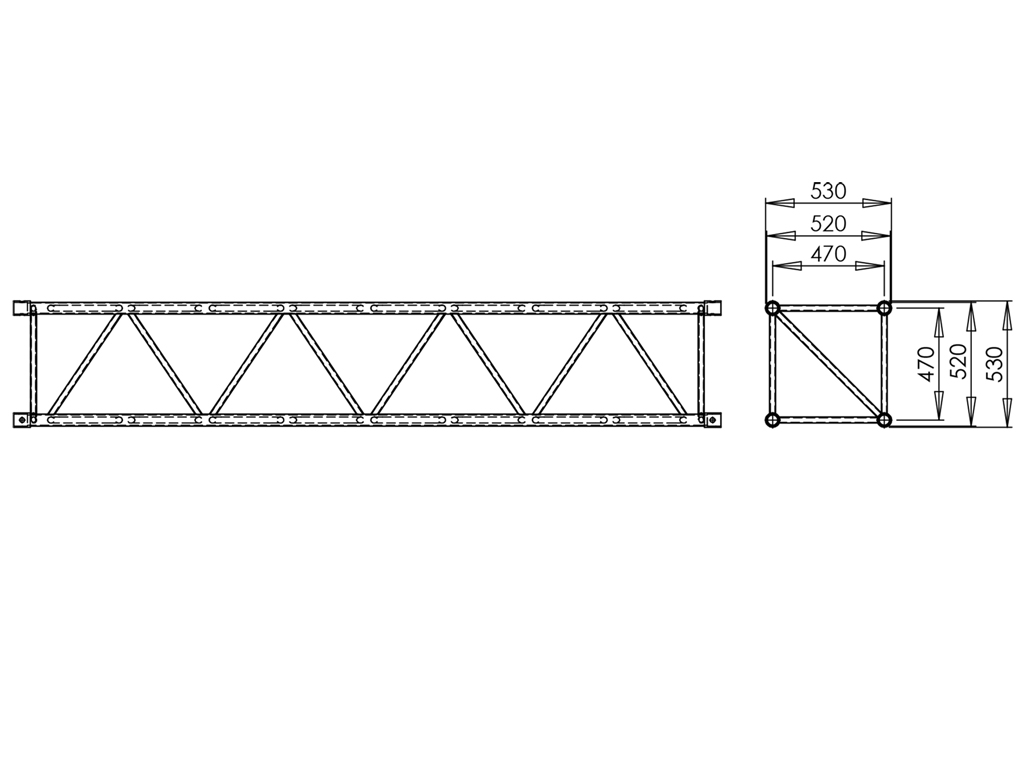

Technical Data
mft
| Categories | Nomenclature | Value | Units |
|---|---|---|---|
| Main Tube Section | Ø Main | 50 X 4 | inch |
| Braces Section | Ø Diag | 30 X 3 | inch |
| Allowable Normal Force In Main Chords | N | 42.35 | tonsF |
| Allowable Normal Force In Braces | N | 20.36 | tonsF |
| Moment of Inertia Y-Axis | ly | 10906.22 | cm4 |
| Allowable Bending Moment Y-Axis | My | 39.81 | lbf-ft |
| Allowable Shear Force | Qz | 31.19 | tonsF |
| Self-Weight | G | 14.67 | lb/ft |
| Surface Area Complete Truss | A | 23.12 | in2 |
| 1.64 feet - Weight | 18.54 | lb | |
| 3.28 feet - Weight | 39.74 | lb | |
| 6.56 feet - Weight | 64.77 | lb | |
| 9.84 feet - Weight | 97.13 | lb | |
| 1.64 feet - Volume | 0.44345 | ft3 | |
| 3.28 feet - Volume | 0.88691 | ft3 | |
| 6.56 feet - Volume | 1.77382 | ft3 | |
| 9.84 feet - Volume | 2.66073 | ft3 |
Downloads
Application Tip | Datos Truss / Truss Data |  | Download |
